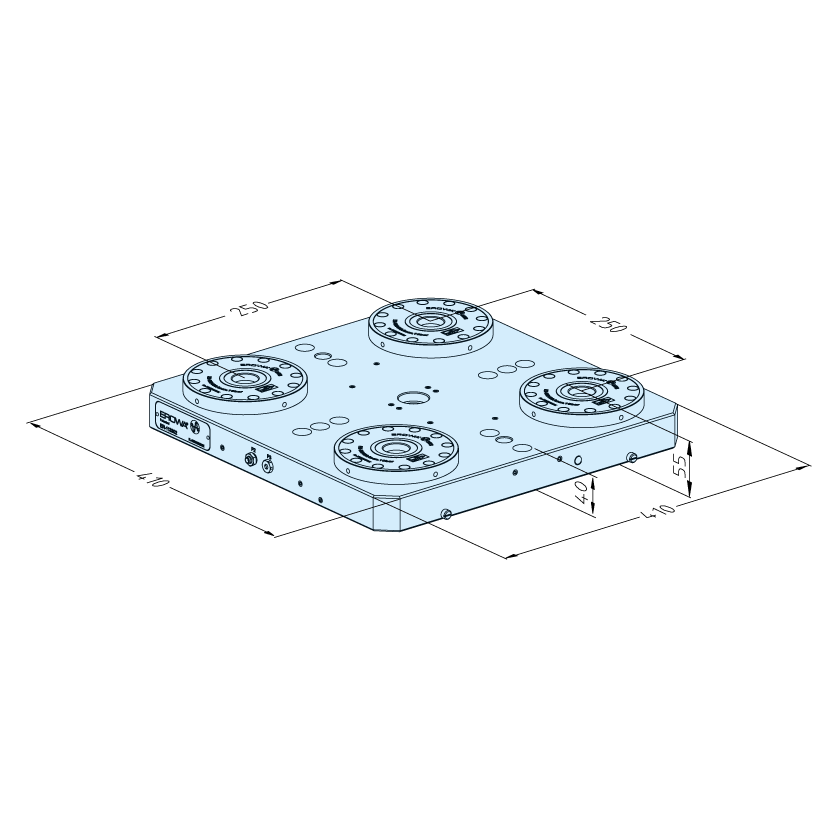

MTS base plate 410 x 410 P
Universal, pitch 250
Article Number
ER-113302
Product labels
Version
Base plate universal, steel unhardened, pitch 250mm. Including adapter flange without air boreholes.
Connections
Laterally: for opening.
Option
Control from underneath possible with the relevant adapter flange (available on request).
Application
To accommodate multiple pallets. For direct assembly on machine tables.
To fit
Mounting hole pattern for grid 50mm/M12 and for machine tables with T-slot distances of 63 and 100mm.
